LPCB Addressable fire alarm system 32 zone control panel AW-FP300

The purpose of the AW-FP300 Fire Alarm Control Panel (FACP) is to monitor input signals, give indications and possibly activate outputs as programmed. It is designed to comply with EN 54-2 with qualit...

Product overview：

The fire alarm control panel is an important part of the fire alarm system. It is mainly used to receive, display and transmit fire alarm signals, and has the function of issuing control signals.

The main functions of the fire alarm control panel are system power supplying, fire alarm signal receiving, and equipment linkage.

1.System Power Supplying

The fire alarm control panel can provide a stable power supply for external devices such as smoke detectors. Meanwhile, it can also monitor the working status of external devices and the system itself.

2.Fire Alarm Signal Receiving

The fire alarm control panel can receive, convert, and process the fire alarm signal output from the detectors, giving sound and light alarms, indicating the specific location and time of the fire alarm, and recording the alarm information.

3.Equipment Linkage

The fire alarm control panel can activate the fire alarm signal through the fire alarm sending device or activate the automatic fire extinguishing equipment and linkage control equipment through the automatic fire extinguishing control device.

Therefore, we can see that the main functions of the fire alarm control panel are to provide a high-stability DC power supply to the fire detectors, to monitor whether the transmission wires connecting the fire detectors are faulty, and to receive the fire alarm signals sent by the fire detectors. It can convert and process the fire alarm signals, giving out sound and light warnings, then activating the fire-fighting equipment.

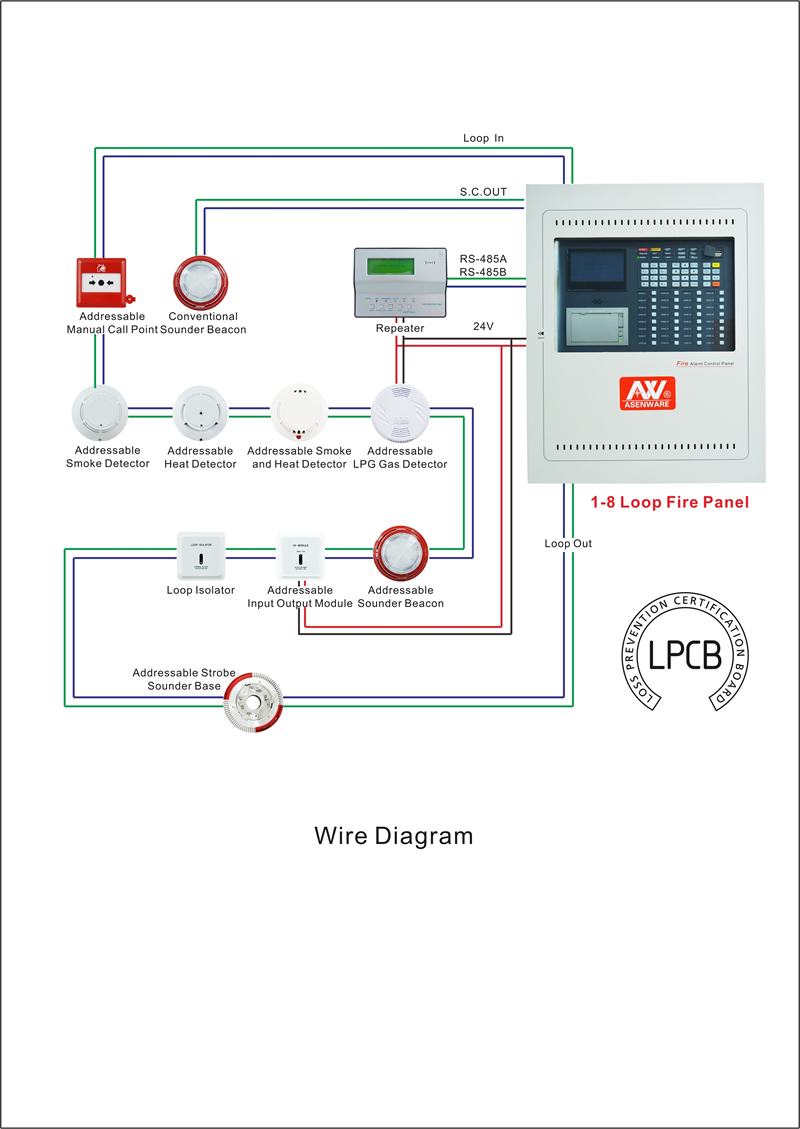

The AW-FP300 Fire Alarm Control Panel is an addressable fire detection panel with 1 loop of 324 addressable points and expansion capabilities. It is compatible with other peripherals made by ASENWARE with its own protocol.

Product Features：

Addressable fire alarm system AW-FP300 Features：

The AW-FP300 single loop 32 zone fire alarm control panel offers the following features:

1. Up to 324 addresses on one loop

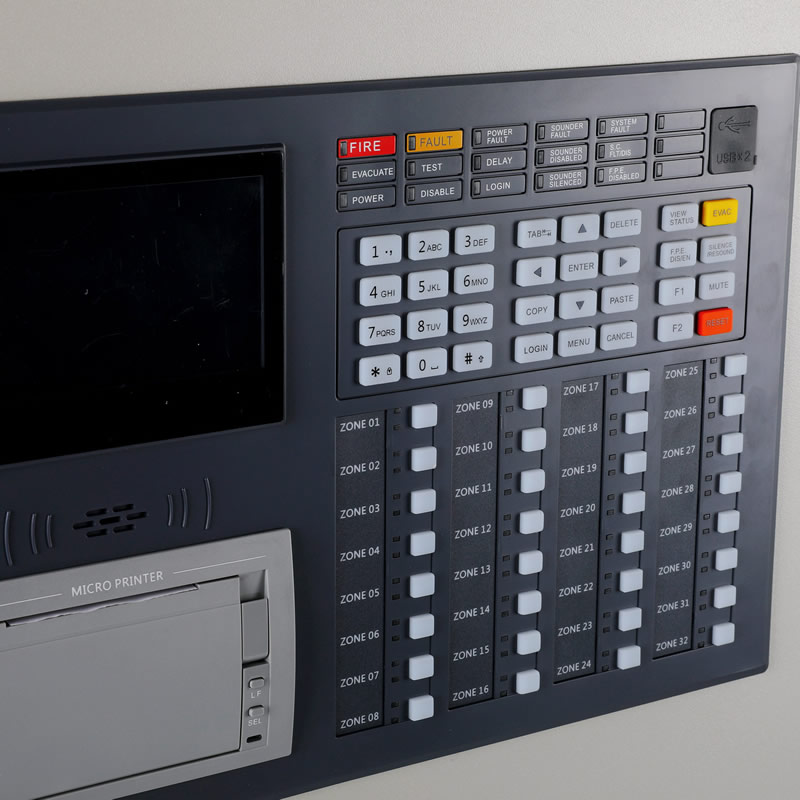

2. An easy to read, 4.3'' color screen LCD with a resolution of 480×272

3. Zone indication and control panel(ZCP) for 32 zones gives a quick indication of the location of an alarm

4. Record capacity of 1000 historical events for each of historical fire, historical fault and historical operation

5. An independently programmable conventional sounder circuit output

6. Integral power supply and battery

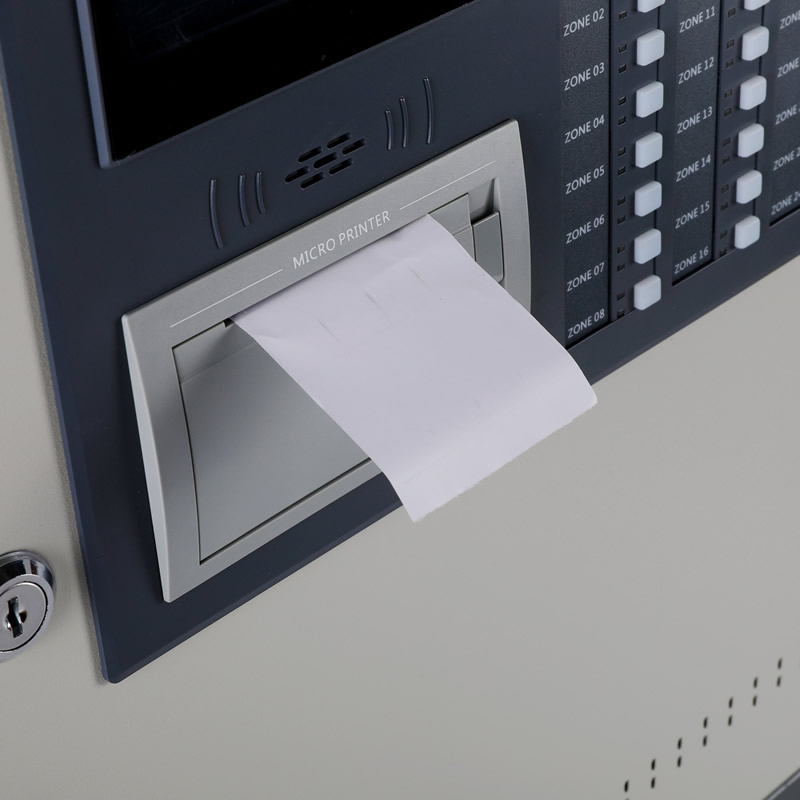

7. Integral printer

8. Flexible and intuitive cause and effect programming on front panel

9. Zone test, point test and module start/stop testing facilitate the commissioning

10. U-disk interface makes the load and save of configuration or historical data convenient for system commissioning and maintenance

11. Hierarchy management with three access levels

12. Anti-tamper protection by a key lock

13. CAN bus for interconnection of up to 20 FACPs and RS485 for connection with up to 30 fire indicating panels per FACP

Technical parameters：

Addressable fire alarm control panel Technical parameters：

Power supply
Mains supply				230VAC (-15%, +10%). 47 ~ 63Hz. Max current 0.8A
Mains fuse				T3.15AL250V
Operating voltage				18.5 ~ 30VDC
Recommended mains cable				Screened or standard/black mains cable, cable size 0.75mm2
Power rating				Imax.a=1.2A; Imax.b=2.6A; Imin=0.65A
Max. charging current				1.2A
Max. battery supply current				4A (when the Mains is disconnected)
Battery capacity, type and recommended model				Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA. PS-12170 for 17Ah (Power-sonic), PS12120 for 12Ah (Power-sonic)
Max. internal resistance of battery				1.5Ω
Battery fuse				F8AL250V
Recommended battery cable				14AWG
Quiescent current (full loaded)				< 0.4A
Outputs
S.C. Out (+, -)		Output voltage				18.5 ~ 30VDC
Max. output current				0.5A
Fuse rating				F1AL250V
End of line resistor				4K7
Recommended type of cable				Plain unscreened cable, 1.5mm2
Cable diameter				1mm2 ~2mm2
Transmission distance				≤1500m
Max. number of sounders @50mA				20
F.P.E. Out (+, -) F.A. Out (+, -)		Output voltage				18.5 ~ 30VDC
Max. output current				0.5A
Fuse rating				F1AL250V
End of line resistor				4K7
Recommended type of cable				Plain unscreened cable, 1.5mm2
Cable diameter				1mm2 ~2mm2
Transmission distance				≤1500m
Fault Out (NC, COM, NO)		Contact capacity				30VDC@2A, 125VAC@0.5A
Recommended type of cable				Plain unscreened cable, 1.5mm2
Cable diameter				1mm2 ~ 2mm2
24VK (+, -)	Output voltage				18.5 ~ 30VDC
Max. output current			0.6A
Fuse rating			F1AL250V
Recommended type of cable			Plain unscreened cable, 1.5mm2
Cable diameter			1mm2 ~2mm2
Input
Class change (+, -)	Input mode				Passive
Cable resistance			≤500Ω
Recommended type of cable			Plain unscreened cable, 1.5mm2
Cable diameter			1mm2 ~2mm2
Loop
Loop Out (+, -) Loop In (+, -)	Output voltage				16.5 ~ 30VDC, pulse
Output current			0 ~0.3A
Loop type			Class A
Recommended type of cable			Screened or unscreened twisted-pair, 1.5mm2
Transmission distance			≤1000m
Cable diameter			1mm2 ~2mm2
Network communication
RS-485	Max. number of FIPs				30
Transmission rate			9600 bps
Recommended type of cable			Screened or unscreened twisted-pair, 1mm2
Transmission distance			≤1000m
Cable diameter			1mm2 ~5mm2
CAN	Max. number of panels				20
Transmission rate			Optional: 10K, 20K, 50K and 100K bps
Recommended type of cable			Screened or unscreened twisted-pair, 1mm2
Transmission distance			≤1000m
Cable diameter			1mm2 ~5mm2
Physical dimensions
Approx. Dimensions of the panel (W×H×D)			430×560×170mm
Approx. weight (without battery)			14kg
Operating conditions
Temperature range: -5°C~50°C; Max relative humidity: 95%
