Two Wire Conventional Heat Detector AW-CTD322 AW-CTD322
Product overview： Two LEDs on each detector provide local 360° visble alarm indication. They die out when the ambient temperature do not reach alarm value. If temperature reach alarm value, then detector enter to alarm mode and LEDs light.
Product Features： | Operating Voltage Range: | 9 to 28 VDC Volts Non-polarized
| | Maximum Alarm Current(LED on): | ≤48mA@24VDC
| | Operating Temperature Range: | -10℃ to 70℃
| | Fix Temperature Range: | 60℃
| | Rate of Rise Alarm: | 7.1℃/5S
| | Height: | 31.78mm installed in Base
| | Diameter: | 99.45mm |

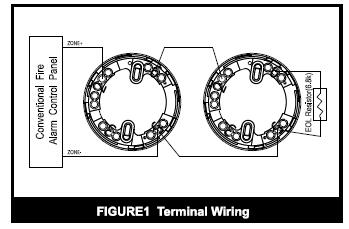

Technical parameters： Terminal 6: IN+(Zone Input+) Terminal 5: IN-(Zone Input-) Terminal 2: Out+(Zone Output+) Terminal 5: Out-(Zone Output-) |
